The Importance of Drainage Design in Large Fountain Installations
Learn why proper drainage design is essential for large fountains, water fountains, and outdoor water features. Prevent damage, improve performance, and extend lifespan.
Why Drainage Matters in Fountain DesignWater is the defining element of all water features, but managing that water effectively is just as important as making it look good, preventing flooding around the installation.
- Protect mechanical equipment
- Manage rainwater intrusion
- Enable maintenance and cleaning.
- Protect surrounding structures and landscapes.
The Hidden Water Challenges in Large Fountain InstallationsMost people think fountains are simple—just a basin, a pump, and water moving through decorations. In fact, large fountains use complex hydraulic systems.
These systems must account for multiple sources of water, including:
- Recirculating fountain water
- Rainwater enters outdoor basins.
- Splash-out from wind or user interaction
- Maintenance water during cleaning
- Emergency overflow situations
Preventing Overflow and FloodingA key job of drainage design is to stop overflow.Overflow can occur for several reasons:
- Heavy rainfall is entering the outdoor basins.
- Excess fill water
- Splash from wind-driven water jets
- Pump malfunctions
- Blocked drain systems
- Overflow drains
- Standpipes
- Skimmer systems
- Level control sensors

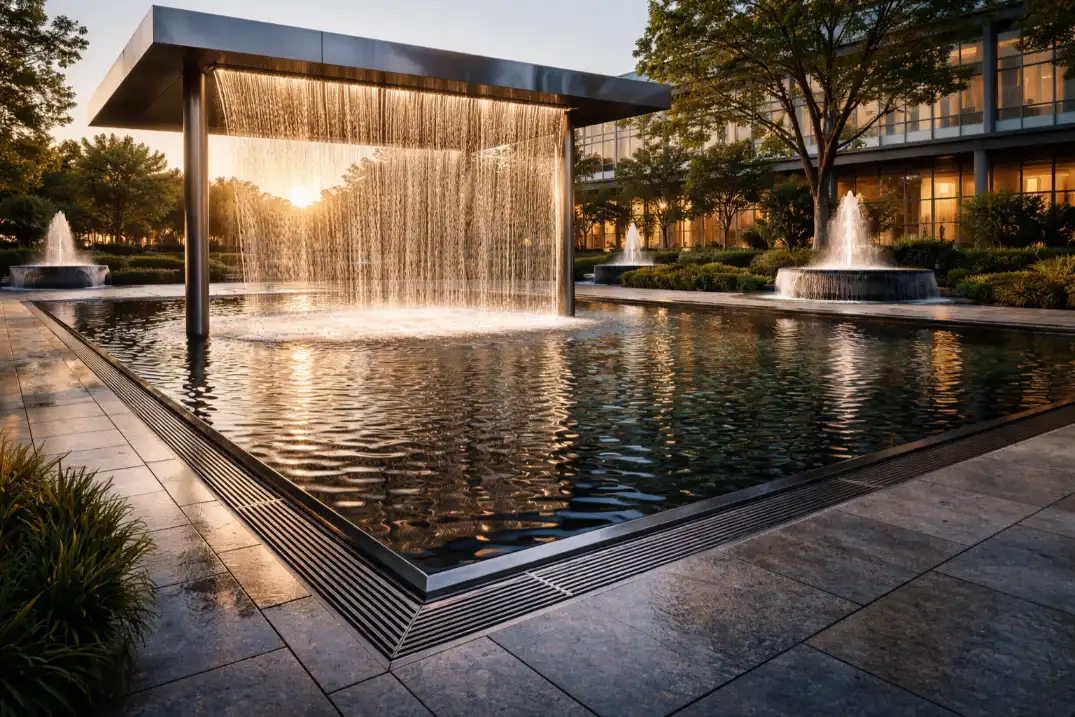

For example, a large rain curtain fountain may use a hidden overflow channel built into the basin wall. When the water level rises above a certain height, the excess water flows through the channel and into a drainage system connected to the stormwater infrastructure.
Without this, extra water could spill into nearby buildings, walkways, or landscaping.
Protecting Structural IntegrityPoor drainage doesn’t just cause puddles—it can also damage buildings and structures.Water that accumulates around fountain foundations can lead to:
- Soil erosion
- Concrete deterioration
- Foundation shifting
- Damage to nearby buildings
For example, large floor fountains integrated into architectural surfaces often sit above mechanical vaults containing pumps and filtration systems. If drainage fails, water could infiltrate these vaults, damaging critical equipment.
That’s why professional fountain designers add drainage layers under the basin to move water safely away from important parts of the structure.
Managing Rainwater in Outdoor FountainsRainwater is one of the biggest challenges when running a fountain.
A big outdoor fountain with a wide basin can collect a lot of rain during storms. In some places, this can really change how the fountain system works.
If drainage isn’t planned, rainwater can cause:
- Overflow flooding
- Dilution of water treatment chemicals
- Debris buildup
- Pump system strain
To avoid these issues, designers often add rainwater drainage channels to the fountain basin.These systems may include:
- Overflow drains connected to stormwater lines
- Sloped basin floors directing water to drainage points
- Hidden perimeter drains
- Adjustable water level controls
Even decorative garden fountains benefit from these systems, especially in areas with heavy rainfall during certain seasons.
Protecting Fountain EquipmentEvery large fountain has a mechanical system that keeps the water flowing.
Pumps, filters, valves, and lights all need to stay dry and easily accessible to work safely. Poor drainage can allow water to build up around this equipment, causing problems.
For example, mechanical rooms beneath outdoor fountains often contain sensitive electrical components. If water gets in due to poor drainage, it can cause equipment to fail or pose safety risks.
Proper drainage design, therefore, includes:
- Equipment vault drainage systems
- Sump pumps
- Waterproof enclosures
- Emergency water diversion systems
These steps help protect the fountain's main mechanical parts.
Maintaining Water QualityDrainage also affects water quality.
Large fountains reuse water by filtering and treating it to keep it clear and clean. If drainage isn’t properly designed, debris and dirt can accumulate in the basin.
This can lead to:
- Cloudy water
- Algae growth
- Blocked filtration systems
- Increased maintenance costs
Good drainage systems get rid of unwanted materials before they cause problems for the fountain.For example, some wall fountains and rain curtain fountains incorporate debris traps and skimmers that collect leaves and contaminants before they enter the pump system.These small design choices make a big difference in how well the fountain works over time.
Improving Maintenance and ServiceabilityMaintenance is always needed when running large fountains.
Over time, fountains require:
- Cleaning
- Pump replacement
- Pipe inspections
- Water treatment adjustments
Large outdoor fountains often have special drain lines so the basin can be emptied without flooding the surrounding area.
Similarly, large indoor fountains installed in commercial buildings must have controlled drainage systems to protect interior flooring and structural materials.
Without good drainage, regular maintenance can be hard, costly, and even risky.
Drainage Considerations for Different Fountain TypesDifferent types of fountains need their own drainage solutions.
Rain Curtain Fountains
A rain curtain fountain makes a striking sheet of falling water. Because the surface area is so big, these fountains create a lot of splash and evaporation.
Drainage systems need to capture excess water and return it to the fountain’s circulation.
Wall FountainsWall fountains often rely on narrow troughs to catch falling water. If the drainage is too small, water can splash out and damage nearby walls or floors. Active floor fountains in plazas or commercial spaces require especially careful drainage design. Water must be contained within flush-mounted nozzles while preventing puddles that could create slipping hazards.
Indoor Water FountainsLarge indoor fountains need to keep building materials safe from moisture. Their drainage systems are often linked to the building’s plumbing to handle overflow and maintenance.
Tabletop FountainsEven though they’re small, tabletop fountains still need good water containment. Even a small leak can harm furniture or electronics.
Sustainability and Water ConservationModern fountain design pays more attention to sustainability. Drainage systems help the environment in several ways.
Many large water features now incorporate:
- Rainwater capture systems
- Water recycling loops
- Smart water level monitoring
- Efficient filtration systems
These technologies help save water and make fountains run more efficiently.
For example, rainwater collected from nearby surfaces can be filtered and reused to supply garden fountains or landscape water features.
In areas with drought, these systems can significantly reduce water use while still preserving the beauty of flowing water.
The Role of Professional Fountain EngineersDesigning drainage for large fountains takes special skills and knowledge.
Fountain engineers consider factors such as:
- Water volume and circulation rates
- Basin dimensions
- Local rainfall patterns
- Structural loads
- Pump capacity
- Maintenance accessibility
These experts often work with architects, landscape designers, and civil engineers to build complete, integrated systems.
No matter the type—large outdoor fountains, wall fountains, or rain curtains—professional engineering helps the system work well for years.
Long-Term Value of Proper Drainage Design
Spending time and money on drainage design isn’t the most obvious part of building a fountain, but it’s one of the most important.
Well-designed drainage systems provide:
- Reliable water level control
- Reduced maintenance costs
- Longer equipment lifespan
- Improved safety
- Better water quality
In the end, good drainage lets fountains work as they should, bringing beauty and atmosphere without causing problems.
Whether it’s a famous city fountain or a quiet garden one, every successful fountain relies on hidden systems that manage the water.
Drainage might not be exciting, but it’s the foundation of every great fountain.

FAQs:
1. Why is drainage important in large fountains?
Drainage prevents overflow, flooding, and structural damage. Proper drainage design ensures that large water fountains maintain stable water levels and operate safely in both indoor and outdoor environments.
2. Do outdoor fountains need special drainage systems?
Yes. Outdoor water fountains must handle rainwater, splash-out, and environmental debris. Drainage systems such as overflow drains and stormwater connections prevent flooding and protect nearby structures.
3. Can poor drainage damage fountain equipment?
Absolutely. Without proper drainage, water can infiltrate pump rooms and mechanical systems. This can damage equipment used in wall fountains, rain curtain fountains, and other large water features, leading to costly repairs and downtime.
