Introduction

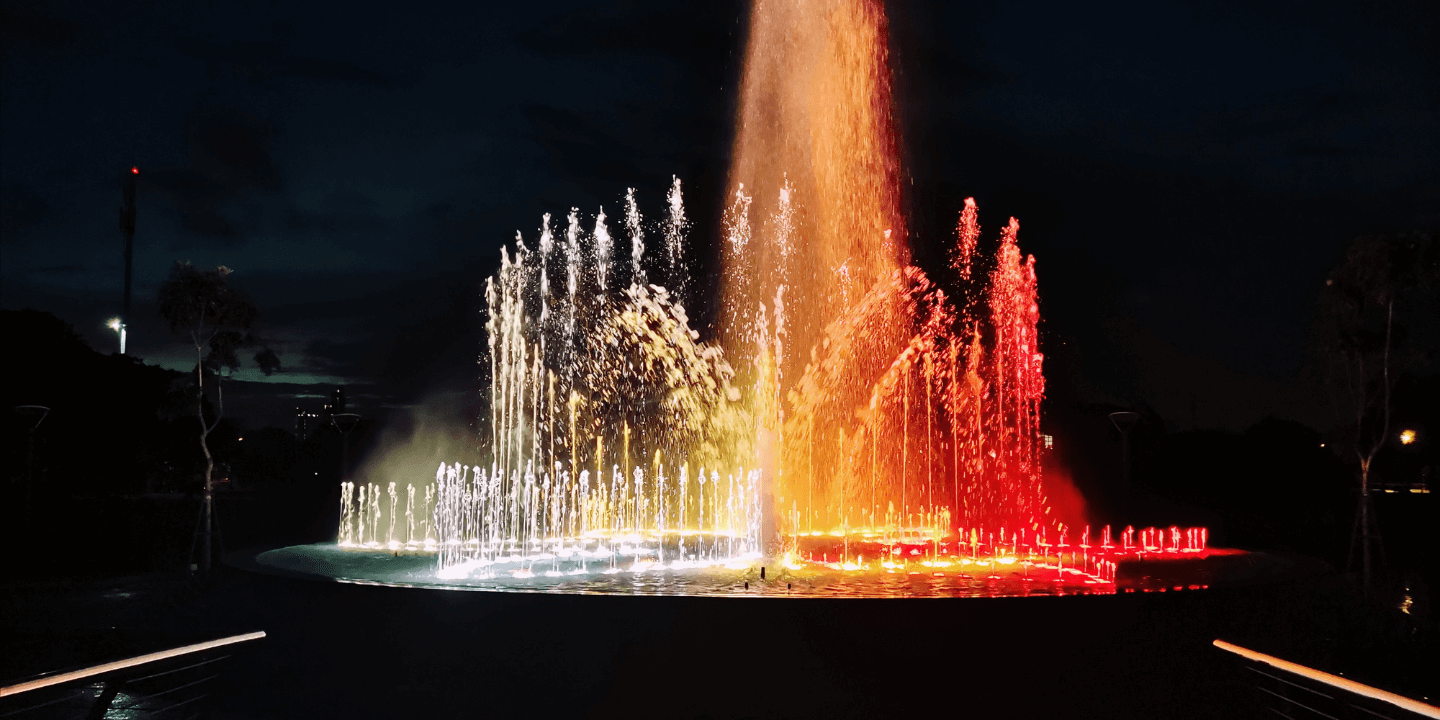

Choreographed fountains, often referred to as “dancing fountains,” captivate audiences with their mesmerizing displays of water, light, and music. These fountains use intricate engineering and physics principles to create synchronized movements that appear almost magical. From the towering jets of the Bellagio Fountains in Las Vegas to the dynamic patterns of the Dubai Fountain, these water features are not only feats of artistic expression but also marvels of science and technology.
But how exactly do these fountains work? What forces govern the soaring water jets, intricate patterns, and the perfect synchronization with music? In this blog post, we’ll explore the physics behind dancing fountains, including fluid dynamics, pressure mechanics, and the role of computer-controlled systems in orchestrating these stunning performances.
1. Fluid Dynamics: The Core Principle Behind Dancing Water
At the heart of any choreographed fountain is the principle of fluid dynamics, the branch of physics that describes the movement of liquids and gases. Water in these fountains follows the laws of motion and pressure to achieve specific effects. The primary factors influencing fluid movement in dancing fountains are:
a) Bernoulli’s Principle
Bernoulli’s Principle states that as the velocity of a fluid increases, its pressure decreases. This principle is crucial in controlling the shape and speed of water jets in fountains. When water is forced through a nozzle at high speed, it forms a coherent stream that maintains its structure due to internal pressure differences.
b) Laminar vs. Turbulent Flow
Laminar flow occurs when water moves smoothly in parallel layers, with minimal disruption. This type of flow is ideal for water jets in dancing fountains because it allows for clear, well-defined streams that maintain their trajectory.
Turbulent flow occurs when water experiences chaotic changes in pressure and velocity. This effect is sometimes used for mist effects and diffused sprays.
2. Pumping Systems: Generating High-Pressure Water Jets
To create powerful water effects, pumps must provide sufficient pressure to propel water to the desired height and shape. Choreographed fountains typically use high-powered submersible pumps capable of adjusting pressure in real-time.
a) Types of Pumps Used in Choreographed Fountains
- Centrifugal Pumps: These pumps generate high-pressure water by spinning impellers, directing water outward with strong force.
- Submersible Jet Pumps: Installed underwater, these pumps push water through nozzles at high speeds to create controlled streams.
- Pneumatic Pumps: These systems use compressed air to rapidly expel water, allowing for sudden bursts and explosive fountain effects.
The pumps are controlled by variable frequency drives (VFDs) that adjust the speed and pressure of water flow, ensuring precise choreography.
3. Nozzles: Shaping the Water’s Motion
Nozzles are the critical components that shape and direct the water jets. Different nozzles produce varying effects, contributing to the complexity of the choreography.
a) Common Nozzle Types
- Straight Jets – Create single, vertical streams.
- Fan Nozzles – Spread water into a fan shape.
- Aerated Jets – Mix air and water for a frothy appearance.
- Laminar Nozzles – Produce smooth, uninterrupted arcs of water.
- Rotating Nozzles – Generate spiraling water movements.
- Jumping Jets – Create segmented water streams that appear to “jump” through the air.
- Nozzles are mounted on actuators that can pivot and tilt, allowing the streams to move dynamically in sync with the music.
4. The Role of Computerized Control Systems
The magic of dancing fountains comes from advanced computer-controlled systems that synchronize water jets, lighting, and music. These systems use precise timing algorithms to coordinate the effects seamlessly.
a) Control Components
- Programmable Logic Controllers (PLCs): These microcontrollers regulate the timing of pumps and valves to execute precise water movements.
- Sensors and Feedback Systems: Measure pressure, water flow, and positioning to ensure accuracy.
- Music Synchronization Software: Uses beat analysis and tempo detection to align water movements with musical rhythms.
- Lighting Control Systems: Coordinate LED and projection lights with water movements for enhanced visual effects.
5. Gravity and Projectile Motion in Water Displays
Many fountain displays rely on the physics of projectile motion to achieve artistic water arcs and patterns. When water is propelled from a nozzle, it follows a parabolic trajectory influenced by gravity and initial velocity.
a) Key Factors Affecting Water Arc Motion
- Launch Angle: Determines the height and distance of the water stream.
- Initial Velocity: The faster the water is ejected, the farther it travels.
- Gravity: Always pulls the water back down, shaping the trajectory.
- Air Resistance: Can slightly alter the motion of the stream.
Fountain engineers use physics equations to calculate the precise angles and speeds needed to produce specific water effects.
6. The Role of Lighting and Projection Mapping
Modern choreographed fountains incorporate LED lighting and projection mapping to enhance their visual appeal. These effects rely on principles of optics and refraction to make water appear as a glowing or color-shifting element.
a) Key Lighting Techniques
- Underwater LEDs: Illuminate jets from below, changing colors dynamically.
- Laser Projections: Create stunning visual patterns on water curtains.
- Refracted Light Effects: Use light bending through water streams to create shimmering visuals.
7. Sound Waves and Water Choreography
Music plays a crucial role in fountain performances. The synchronization of water movements with sound waves is based on wave frequency and amplitude analysis.
a) How Water Responds to Music
- High Frequencies (Treble): Often trigger fast, small-scale movements.
- Low Frequencies (Bass): Used for large, dramatic water bursts.
- Dynamic Ranges: The system adjusts intensity based on the song’s energy levels.
By analyzing the beats per minute (BPM) and amplitude of a track, the control system determines when to activate specific nozzles and lighting effects.
8. Famous Choreographed Fountains and Their Engineering Marvels
a) The Bellagio Fountains (Las Vegas, USA)
- Features over 1,200 nozzles and 4,500 lights.
- Uses a complex pneumatic system for dramatic bursts.
- Choreographed to classic and contemporary music.
b) The Dubai Fountain (UAE)
- World’s largest performing fountain system.
- Shoots water up to 500 feet (152 meters) high.
- Incorporates over 6,600 lights and 50 color projectors.
c) The Magic Fountain of Montjuïc (Barcelona, Spain)
- One of the earliest large-scale choreographed fountains.
- Uses cascading effects and synchronized lighting.
Conclusion
Choreographed fountains are not just captivating performances; they are intricate displays of engineering, physics, and artistic expression. From the precise calculations of fluid dynamics to the seamless coordination of pumps, nozzles, and lighting systems, every element works together to create mesmerizing spectacles. Advanced control systems transform music into motion, synchronizing water jets with rhythms and melodies to produce breathtaking visual symphonies.
Whether it’s the towering jets of the Bellagio Fountains or the grandeur of the Dubai Fountain, these marvels of technology and design continue to push the boundaries of what is possible with water. As innovations in automation, lighting, and projection mapping evolve, the future of choreographed fountains promises even more dynamic and immersive experiences.
